2D Wired Barcode Scanner,Symcode QR PDF417 Bar Code Reader Scanner Long Transfer Distance Computer For POS System
Product Description:
K-528 is snake shape 2D wired handheld barcode scanner. Its ergonomic design, durable construction and easy customization makes it well suited for application in a variety of businesses.The large capacity inventory can save up to 10000 codes giving you plenty of space to store data before uploading to a computer. When you want to upload the data, the scanner is compatible for Windows, Mac, and Linux operating systems as well as programs such as Quickbook, Word, Excel, and Novell.
Product Features
• S-shape design is more ergonomic
• Support various barcodes
• Wire life more durable
• Easy Scannin, plug and play
Product Specification:
| Performance Parameters |
| Light Sources | 617nm LED Aimer, White LED |
| Supported Symbologies | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5. 2D: QR Code, Data Matrix, PDF417, Micor PDF417, Aztec, Maxicode, HanXin code. |
| Scan Type | Image CMOS |
| Resolution | 640*480 |
| Scan Method | Manual/Continuous/Automatic Induction Scanning |
| Scan angle | Yaw±60°, Rotation 360°, Pitch±60° |
| Precision | ≥5mil |
| Depth of scan field | EAN13 50-200MM (13mil); QR 25-240MM(20mil); PDF147 30-130MM(6.67mil). |
| Error Rate | Less than 1/5million |
| Interface | USB-HID, USB-COM, RS232 |
| Physical Parameters |
| Dimensions | 66mm*65mm*200mm |
| Weight | 160g |
| Material | ABS+PC |
| Cable Length | 2m |
| Environmental Parameters |
| Operating Temperature | -20℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 5%~95% RH(Non-condensing) |
| Ambient lighting | 0~100000LUX |
| Drop/Shock Resistance | Withstands multiple times 3 meters drops to concrete |
| Electrical Parameters |
| Voltage | DC5V±5% |
| Operating Current | 170mA |
| Standby Current | USB 25mA; RS232 2uA |

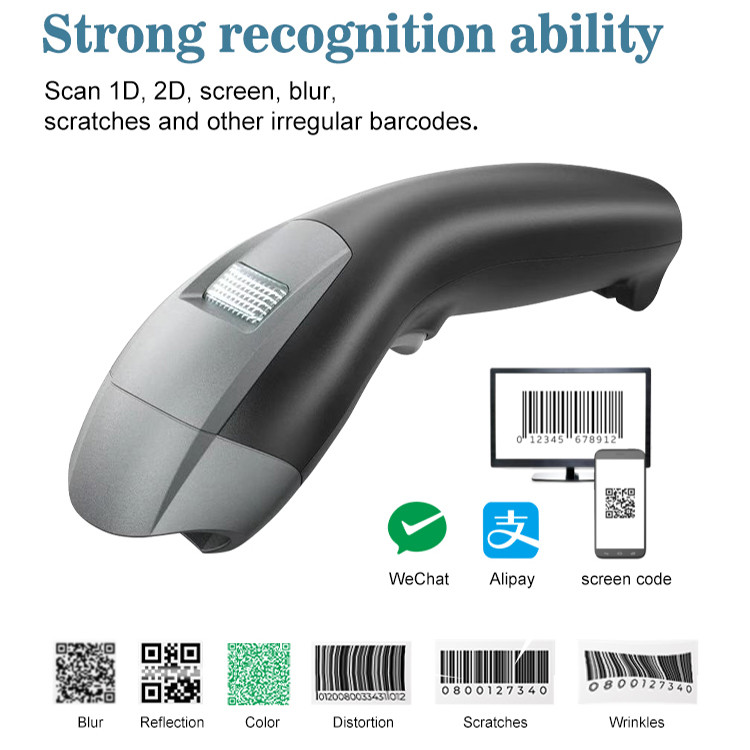

Product Pictures:
Product Application:
• Point of Sales
• Retail and warehouse
• Book store
• Library
FAQ:
1. What are the advantages of 2D barcodes?
2D barcodes can store much more information, up to 7,000 digits or 4,000 characters of information. Most 2D barcodes can also be read by mobile devices and phones equipped with basic cameras that scan both 2D and 1D barcodes.
2. How small can a 2D barcode be?
2D codes can be as small as 1/30th the size of a typical barcode containing the same data. As a result, 2D codes can be printed on electronics and other small parts where space is limited.
3.How many digits can barcode hold?
A UPC-A barcode contains 12 digits, along with a quiet (blank) zone on either side, and start, middle, and stop symbols. The middle symbol separates the left side and the right side, which are coded differently.
