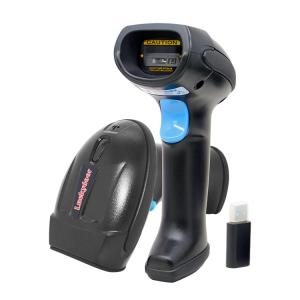

Bluetooth CCD 1D Handheld Barcode Scanner, 3 In 1 Wireless BT Barcode Reader Scanner For Point Of Sales
Product Description:
Sometimes at the point of sales checkout counter ,the cashier need to scan products with film ,frozen packing barcodes , also some distorted ,scratched,poor printed barcodes , it is really difficult for general purpose laser barcode scanner to read those kinds of barcodes , because the decoding principle decide it ,so now the CCD barcode scanner fits in ,its CMOS technology allowing to read above barcodes easily ,this bluetooth CCD barcode scanner is a perfect solution for your business when you under those situations .
Product Features:
• Excellent at decoding distorted ,fuzzy barcodes
• Able to read mobile digital barcodes in the phone
• 3 in 1 working method :2.4Ghz+Bluetooth+Wired
• Compatible with Android and IOS mobile devices through BT
• Offline function allow data capture everywhere
Product Specification:
| Light Source | 617nm Red visible LED |
| Supported symbologies | UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Code 11, ISBN, ISSN, Code 32 (Italian pharm code), Code 39 extended, NVE-18, PZN, Ean-14, LOGMars, GS1-128andITF-14, SISAS, GS10 mnidirectional, GS1 Limited, Aviation25, RSS 14. |
| Scan Type | CCD Image sensors |
| Scan Speed | ≥270 times/s |
| Resolution Ratio | 2500 Piont |
| Scan Mode | Manual/Continuous/Automatic Scintillation/Automatic Induction Scanning |
| Scan Angle | Yaw 65°, Rotation 360°, Pitch 55° |
| Precision | ≥4mil, 3 mil (Optional) |
| Depth of scan field | 20-330mm (0.33mm, PCS90%) |
| Bit Error Rate | Less than 1/5 million |
| Wireless transmission distance | Open space: 100 meters or so |
| Interface | USB-HID, USB-COM |
| Wireless communication mode | Paired special receiver: 2.4g communication; Pairing with mobile bluetooth devices: bluetooth BLE4.0 |
| Storage Mode: Offline Storage Mode | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. |
| Pairing Mode | one-to-one: a scanning gun paired with a receiver; A scanner paired with a bluetooth mobile device. |
| Electrical Parameters |
| Voltage | DC5V±5% |

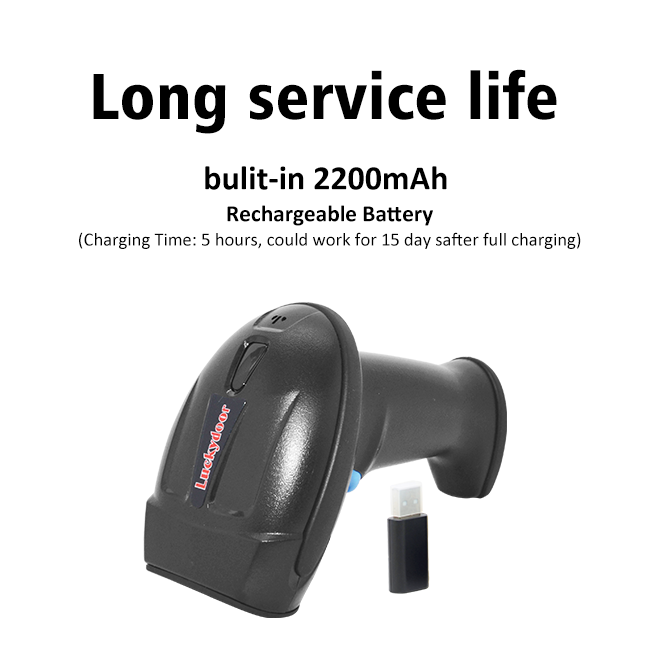

| Battery Working Time | 12h |
| Charging Time | 5 hours |
| Current | Working without code scanning≥65mA, During code scanning≥170mA |
| Standby Current | 0mA |
| Lithium battery | 2200mA |
| Charging Model | Contact the charging |
| Physical Parameters |
| Dimensions | 85mm*62mm*154mm |
| Weight | 321.5g |
| Material | ABS+PC |
| Cable Length | 1.2M |
| Environmental Parameters |
| Operating Temperature | -20℃~+55℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 5%~95% RH (Non-condensing) |
| Ambient lighting | 0~100000LUX |
| Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete |
Product Pictures:
Product Applications:
Comercial POS system(Supermarkets)
Warehousing and logistics
Libraries
Banks and Telecom
Transportation
Postal service
Industrial and manufacturing management
FAQ :
1, What is CCD barcode scanner?
CCD barcode scanners (charge coupled device) technology is also known as linear image barcode scanners/readers. ... The laser shoots a beam of light back and forth across the barcode and the photodiode in the laser scanner interprets the code. These scanners offer accuracy and high precision in reading the code
2, Do barcode scanners need drivers?
Barcode scanners require no drivers, so simply plug the barcode scanner into your computer's USB port or pair with Bluetooth. ... When you scan a barcode, the device converts the barcode into a string of characters (numbers or letters) and passes these through to your computer.
3,Can we connect a scanner to Android phone?
Ensure the Bluetooth radio is switched on the host (smartphone, tablet, PC) device. Discover the scanner with the 'scan devices' option on the Android and select pair with this device (the scanner will be displayed as a keyboard)
